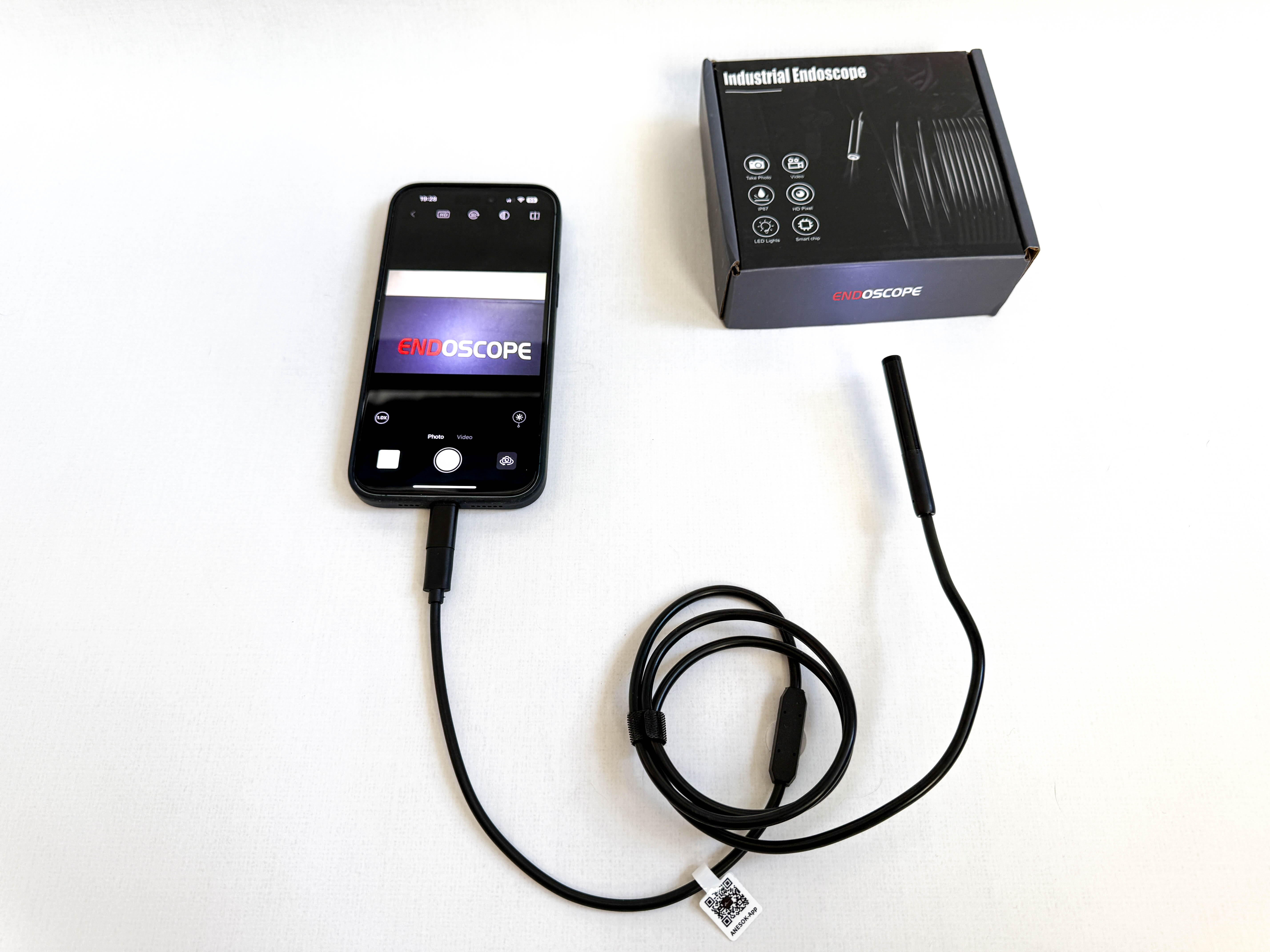

Endoscope Camera MKA8.1LC for iPhone, iPad, and Android — a professional visual diagnostic tool for hard-to-reach areas. The universal camera works via wired connection to Apple devices running iOS (iPhone, iPad) and Android devices. Supported connectors: Lightning, USB Type‑C, and Micro USB. The camera features a rigid 1-meter cable that holds its shape, ensuring precise positioning and ease of use in confined spaces.

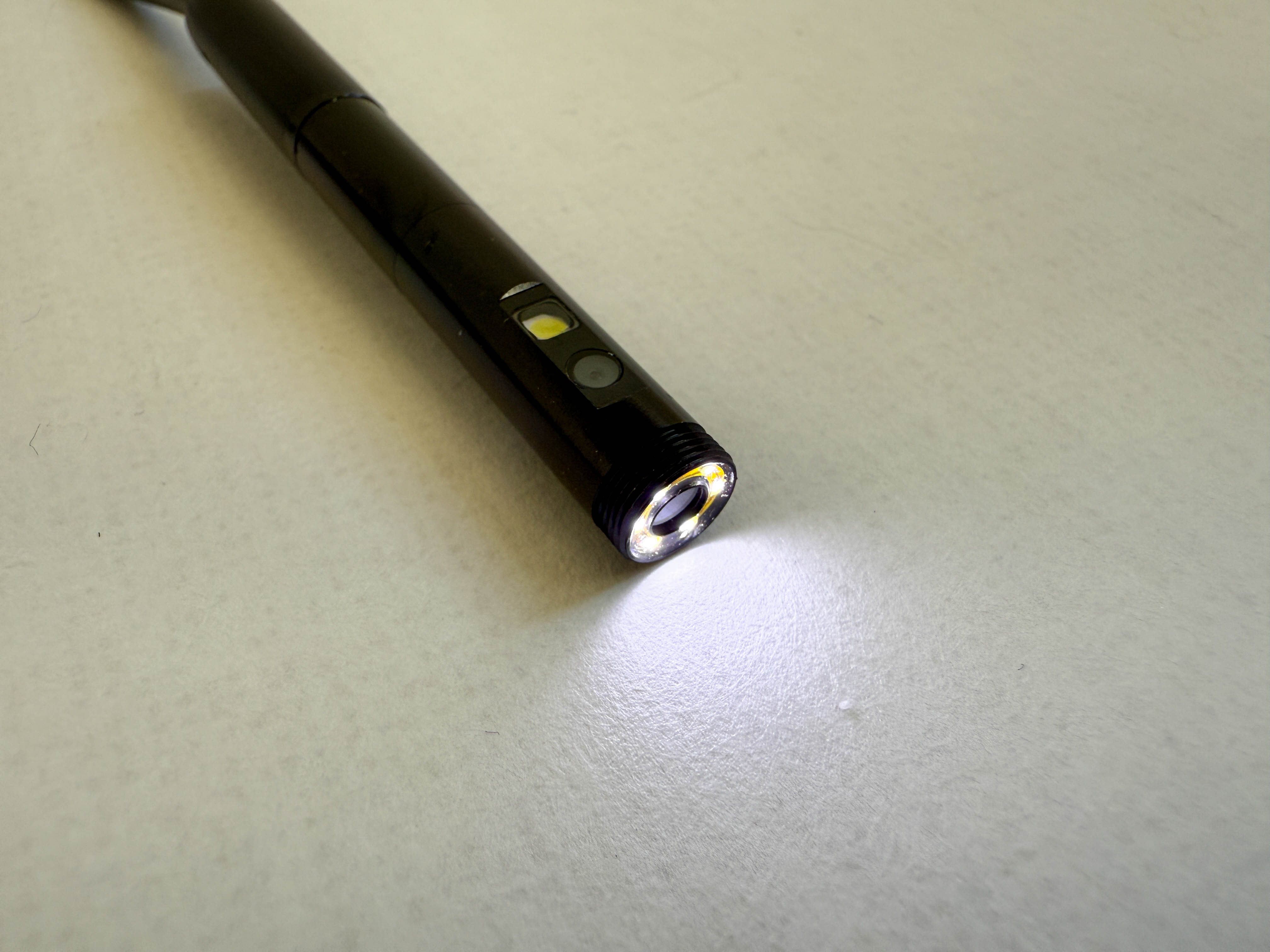

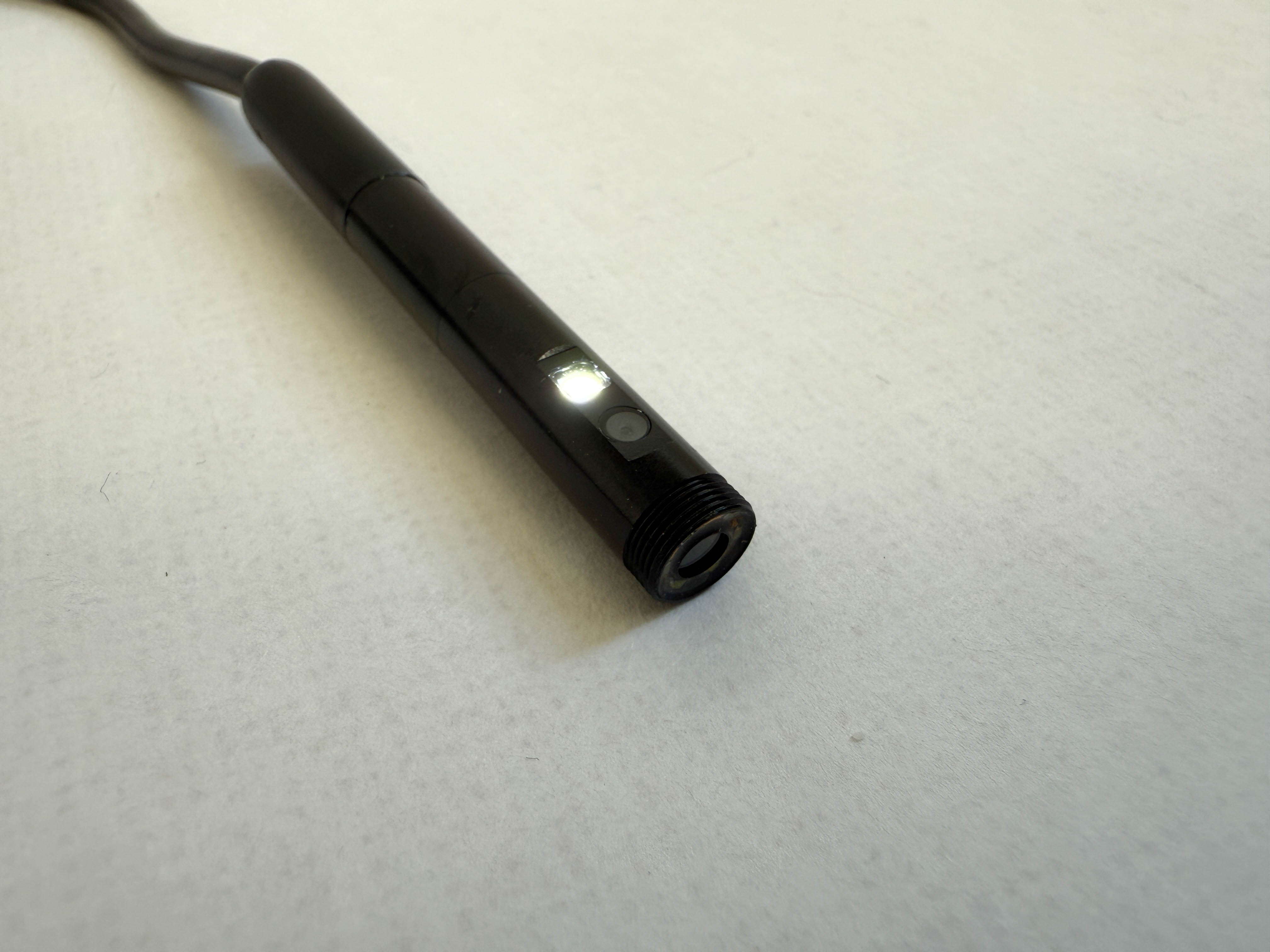

The device is equipped with two cameras: a main camera (resolution 1920×1080 px, 70° viewing angle) and a side camera (resolution 1280×720 px) positioned at a 90° angle to the main one. Switching between cameras is done in the dedicated app. The side camera is indispensable for inspecting cylinder walls, pipes, cavities, and other surfaces where direct view is impossible.
The app offers photo and video recording (formats: JPEG for photos, MP4 for video), smooth brightness adjustment of the 8 LED lights, and the option to completely turn off the illumination. The endoscope has an IP67 rating (dust and water resistant), operating temperature: 0°C to +70°C.

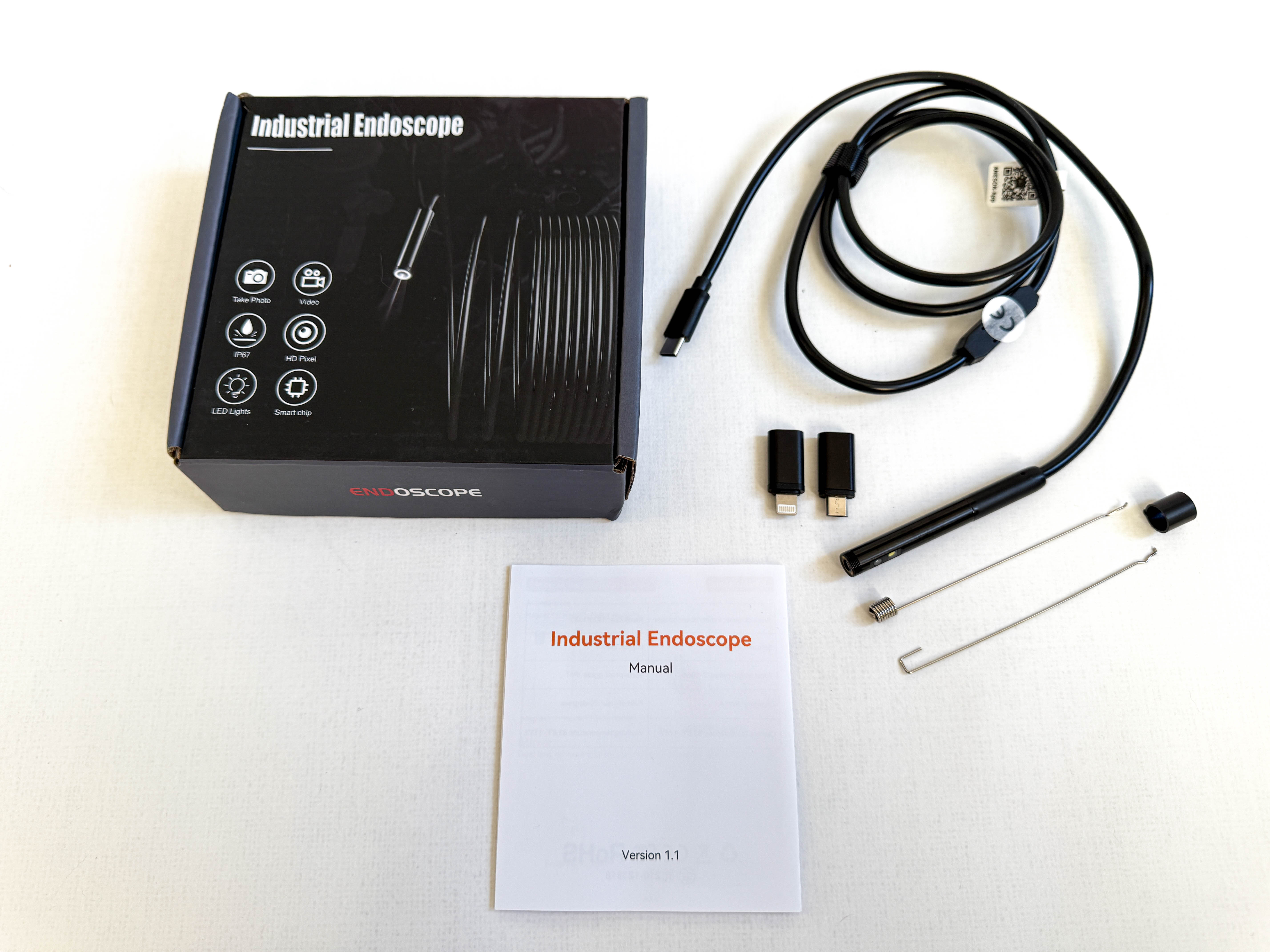

Endoscope Kit Includes:
- Main camera with rigid 1 m cable
- Hook attachment for retrieving objects
- Magnetic attachment
- Lightning adapter
- Micro USB adapter
- Instruction manual with QR code for app installation
Endoscope Applications:
| Application Area | Specific Tasks |
|---|
| Auto Service & Diagnostics | Inspecting piston and cylinder wall condition through spark plug/injector holes; viewing combustion chambers and valves; checking turbine blades; retrieving dropped parts using hook or magnet attachments. |
| Plumbing Work | Locating blockages in pipes, assessing sewer and drain pipe condition, inspecting hidden plumbing sections. |
| Electrical Installation & Repair | Examining wiring in ducts, suspended ceilings, walls without disassembly. |
| Household Use | Finding lost items behind furniture, in ventilation ducts; inspecting hard-to-access areas at home or in vehicles. |
| Industrial Inspection | Visual examination of internal equipment cavities, pipelines, mechanisms without dismantling. |
Endoscope Camera Technical Specifications:
| Lens Diameter | 8.0 mm |
| Main Camera Resolution | 1920×1080 px (Full HD) |
| Side Camera Resolution | 1280×720 px (HD) |
| Main Camera Viewing Angle | 70° |
| Frame Rate | 25 fps |
| Focal Distance | 2–10 cm (fixed focus) |
| Illumination | 8 LEDs with brightness adjustment |
| Water & Dust Protection | IP67 |
| Operating Temperature | 0°C … +70°C |
| Recording Formats | Photo – JPEG, video – MP4 |
| Cable Length | 1 m (rigid, shape-holding) |
| Certifications | CE, RoHS, FCC |
Note: The camera has fixed focus. Optimal image clarity is achieved at a distance of 2–10 cm from the object. Resolution decreases when moving closer or further away beyond this range.
The Endoscope Camera MKA8.1LC is a complete solution for diagnostics, repair, and inspection in auto repair shops, homes, and industrial settings. Compatibility with iOS and Android, dual lenses, water-resistant housing, and a rigid controllable cable make it a versatile tool for professionals and enthusiasts alike.
