Pipeline inspection endoscope with 50m probe and 9-inch LCD screen – a professional diagnostic equipment for visual inspection of internal cavities of pipelines, sewers, ventilation systems, chimneys and other hard-to-reach areas without the need for dismantling or opening. The device allows for precise diagnostics of sections up to 50 meters long with high image detail and distance measurement down to the centimeter.

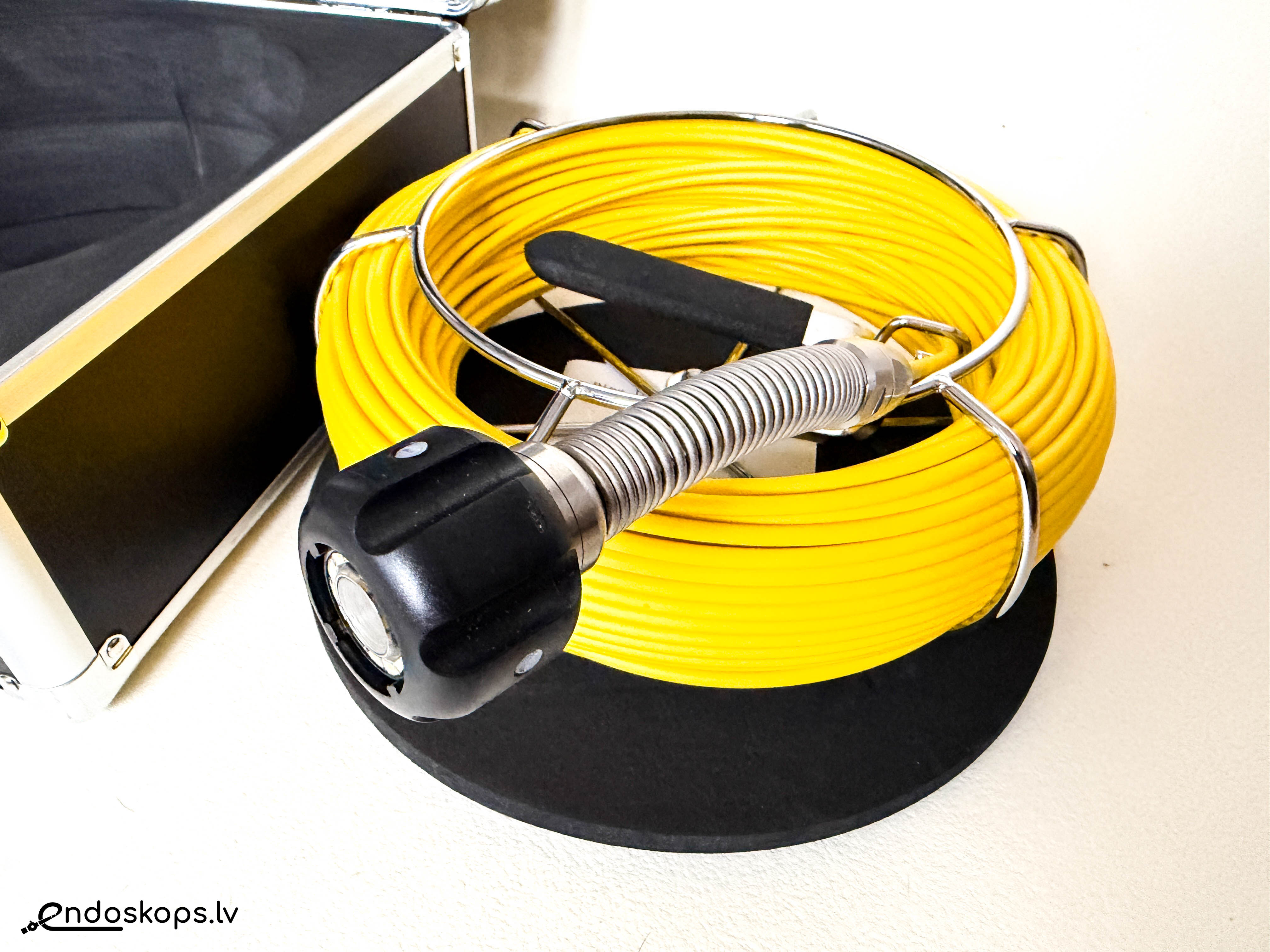

The endoscope is equipped with a rigid fiberglass probe cable that holds its shape and ensures smooth camera advancement over tens of meters. To facilitate operation, the kit includes a roller accessory that minimizes friction and protects the cable. The camera head is made of stainless steel with flexible bending capability to navigate obstacles and complex turns.

A key feature of the system is the built-in electronic length counter on the winding reel. The LCD screen displays the used probe length in meters and feet in real time with an accuracy of 1 cm. This allows precise localization of problem areas – for example, to determine the exact location of damage in an underground pipeline for targeted excavation and repair.

Technical specifications of the pipeline endoscope:

• Probe length: 50 meters (inspection range)

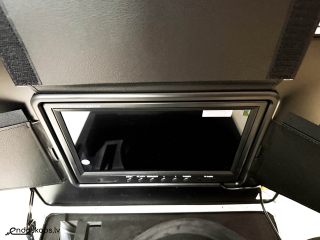

• Screen: 9-inch color TFT LCD monitor with high resolution
• Camera: HD 1000TVL, color image, 140° viewing angle
• Probe cable: rigid, fiberglass, diameter like a wire
• Camera material: stainless steel, dust and water protection IP68
• Camera size: 42x23 mm
• First protective plastic cover size: 38x28 mm

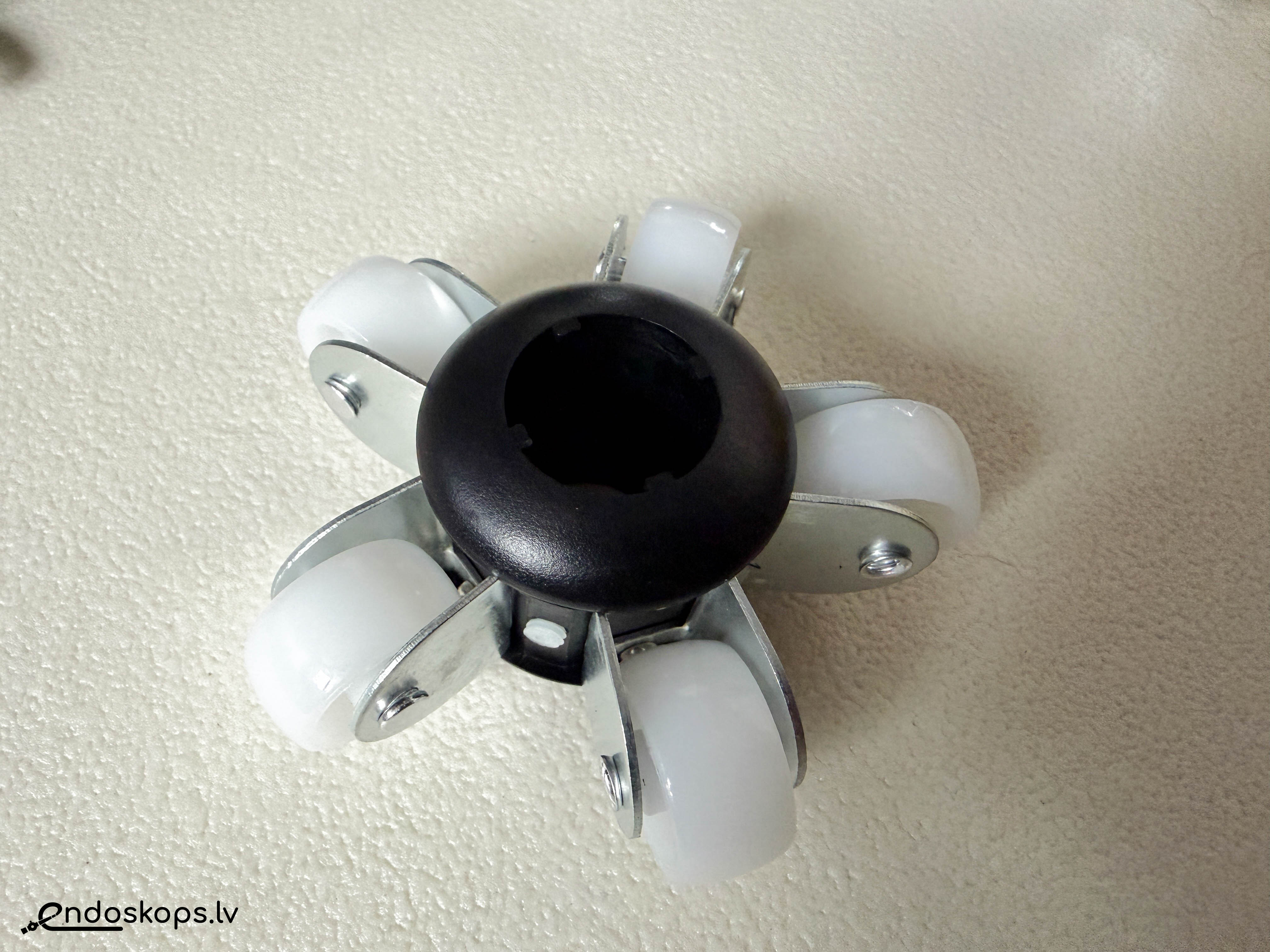

• Second protective roller accessory size: 90x28 mm
• Illumination: 12 LEDs with adjustable brightness, can be turned off completely
• Charger: AC100-240V DC 12.6V
• Battery: lithium, 4.5 Ah (4500 mAh)
• Battery life: up to 6 hours (depending on LED brightness)
• Operating temperature: from -40°C to +60°C
• Storage temperature: from -50°C to +80°C
• Reel with electronic length counter: accuracy 1 cm

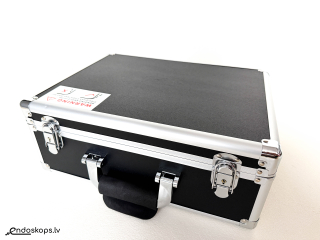

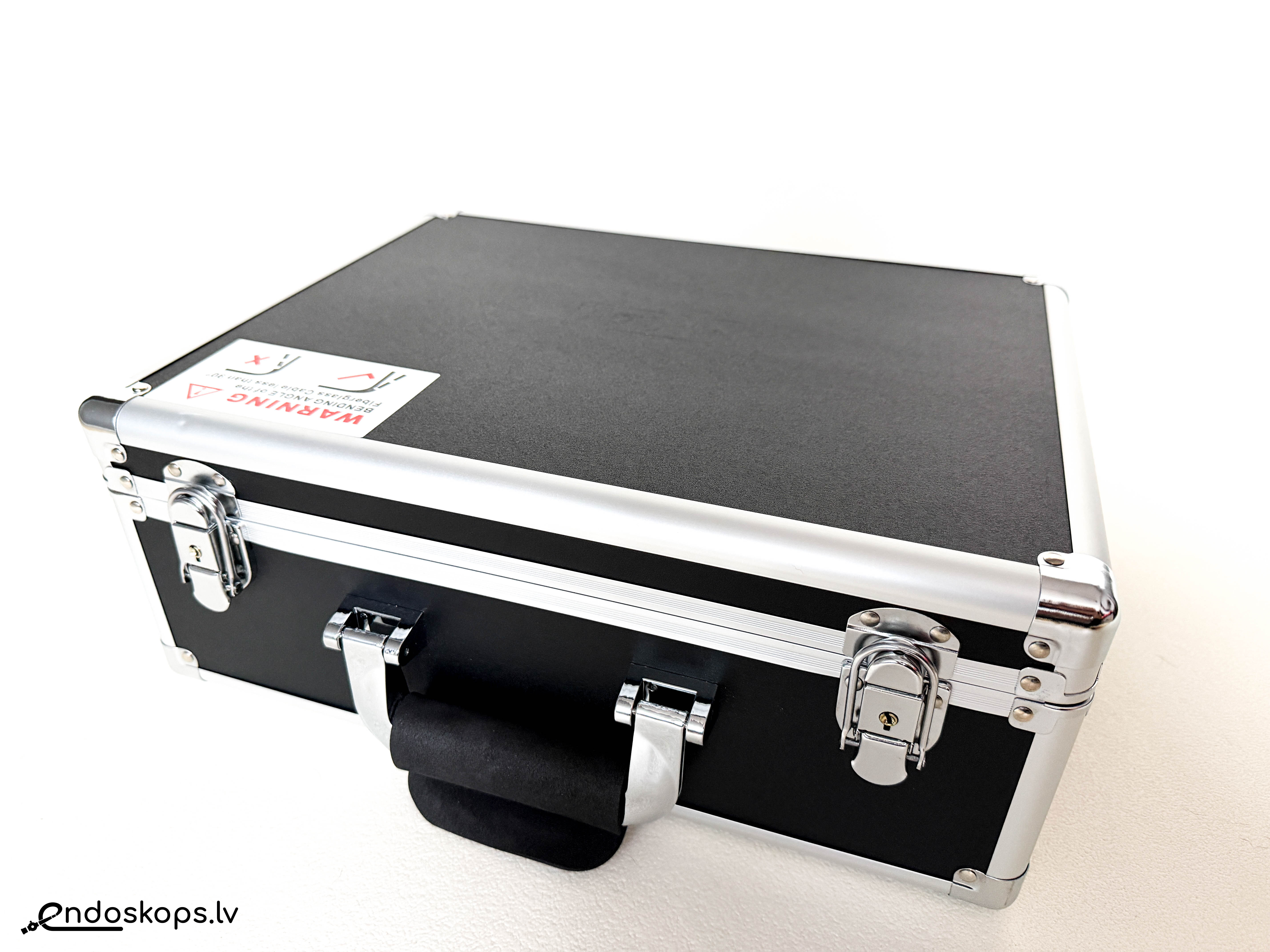

• Case: aluminum carrying case, size 390x320x160 mm

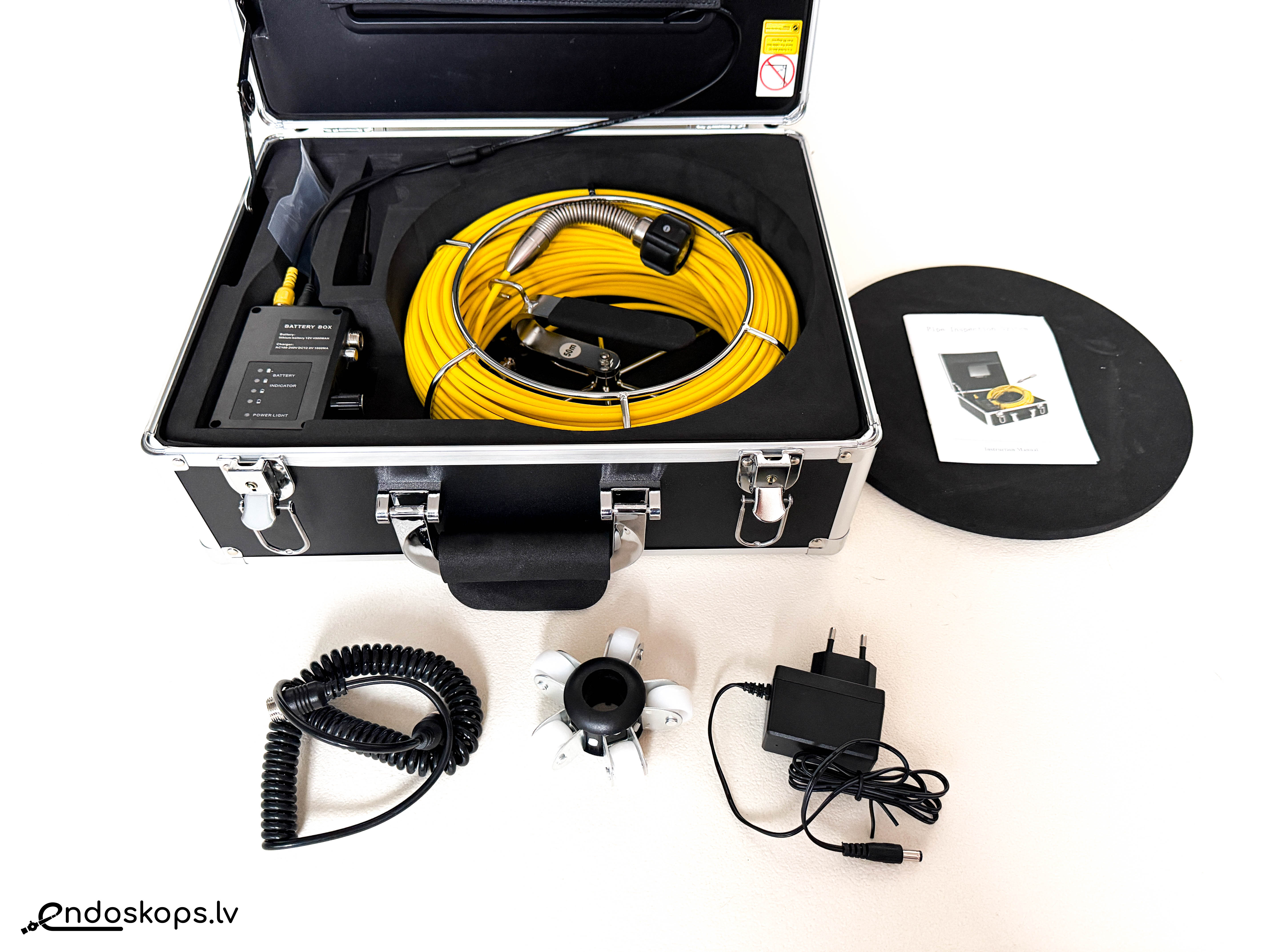

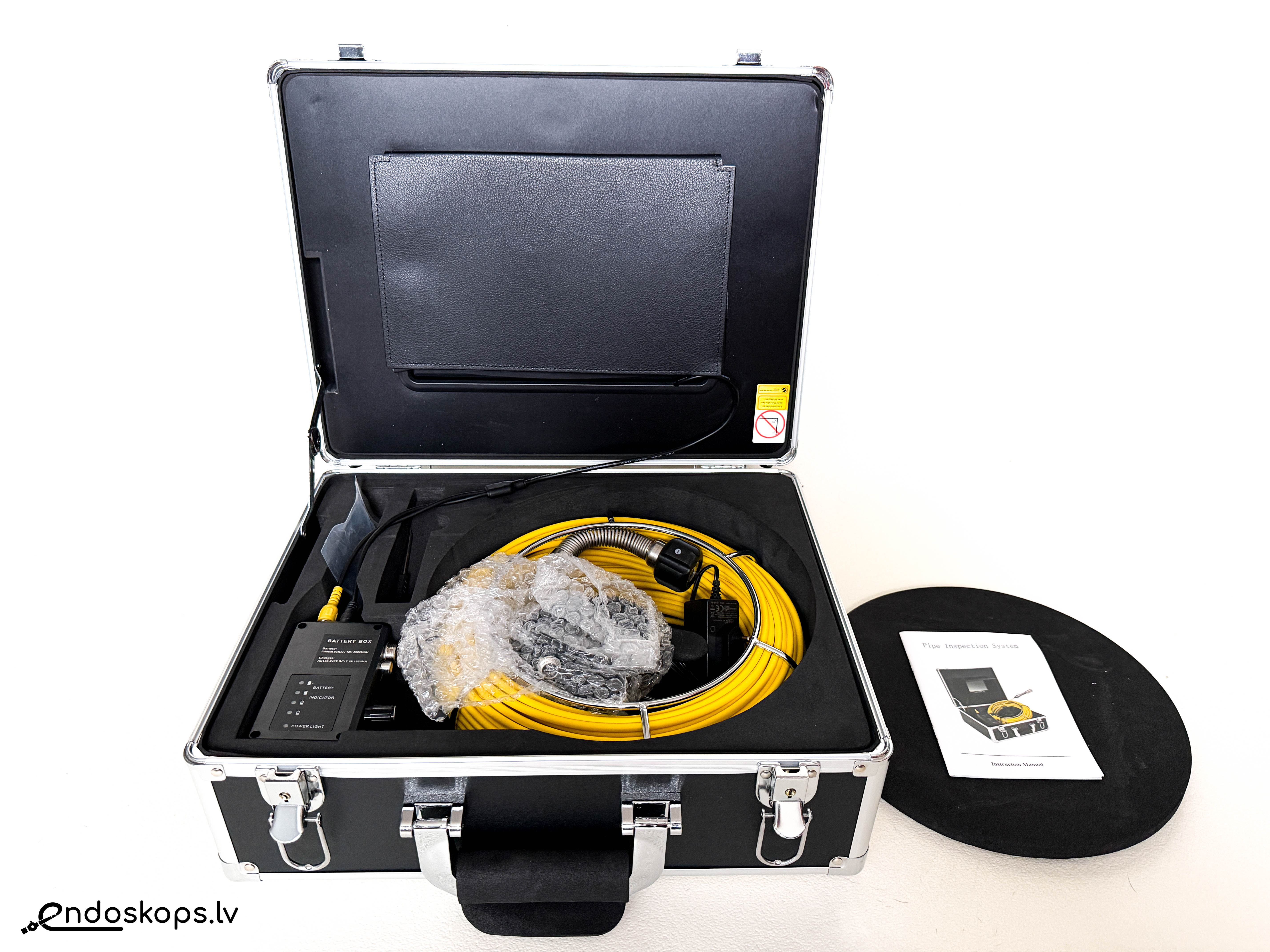

Package contents:

• 9-inch color TFT LCD monitor
• HD 1000TVL camera with flexible head
• 50-meter fiberglass probe
• Protective camera cover

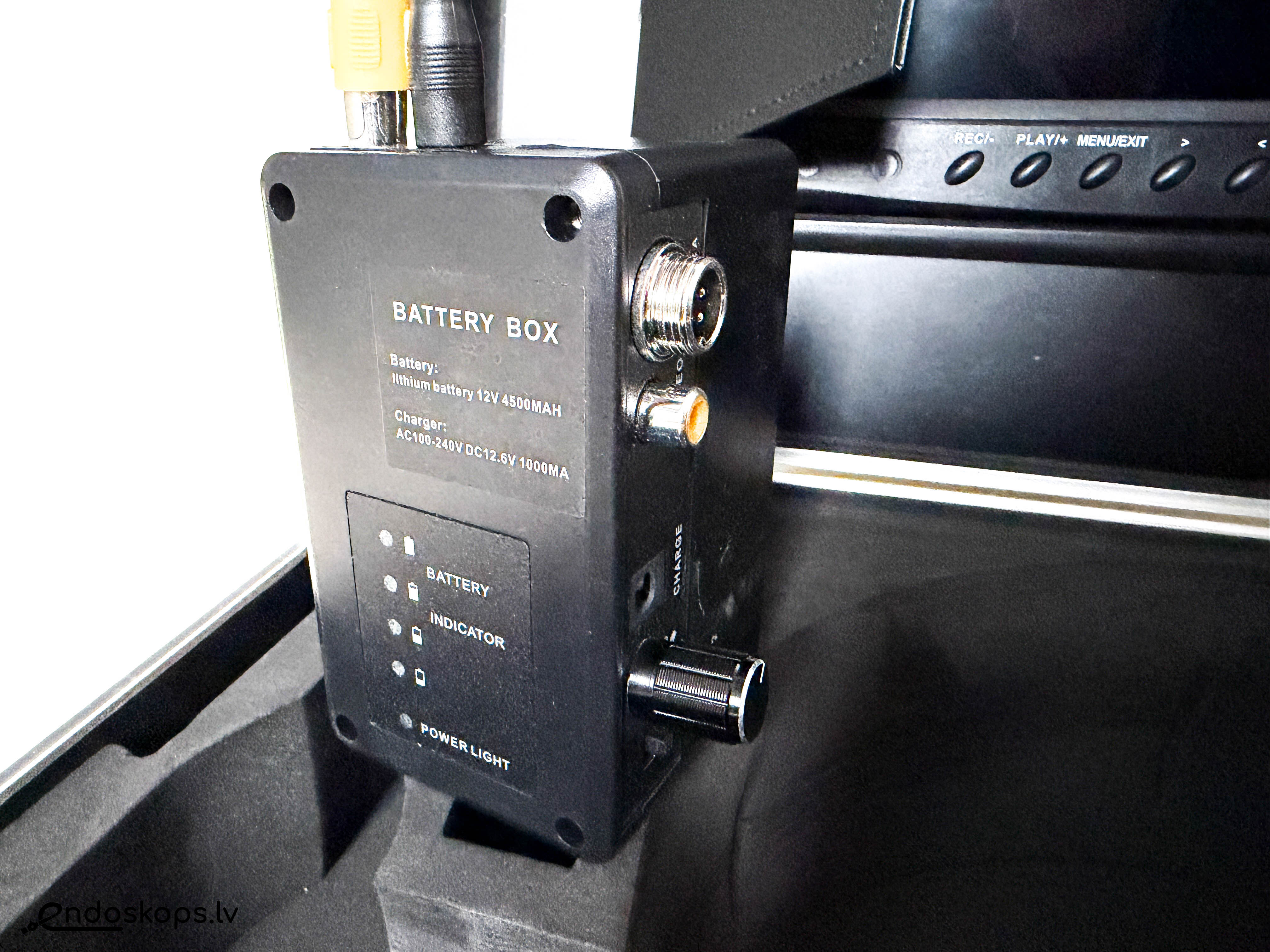

• Control unit with 4500 mAh battery
• 220V network charger
• Connection cable
• 2 protective camera accessories (including roller construction)
• Holder-reel for winding and storing the probe
• Screwdriver
• Aluminum case
• User manual

Application areas:

• Sewer and water pipe diagnostics
• Ventilation systems and chimney inspections
• Examination of wells, boreholes, underground pipes
• Industrial pipeline and duct inspections
• Finding blockages, cracks, corrosion, damage in hidden cavities
• Use in construction, utilities, industry, plumbing services

Model advantages:

• Large 9-inch screen for comfortable detailed viewing
• Precise electronic probe length counter displayed on screen
• Waterproof stainless steel camera (IP68)
• Adjustable LED illumination for dark conditions
• Long 50m probe for extended object inspection
• Complete reel and protective accessories for convenient operation
• Durable aluminum carrying case for storage and transport
• Operation in wide temperature range (from -40°C to +60°C)
• 1-year warranty

Please note: ordered items may have minor variations depending on batch and model improvements, which do not affect core technical specifications and functionality.
